Titan
Vault
Titan Vault

SECURING YOUR POSSESSIONS

The Titan Vault begins with a 3/8” thick dual body constructed of a 3/16” carbon steel body, and 3/16” ArmaKnox AR500 inner steel liner. The standard inner AR500 steel liner gives you safe-within-a-safe style security and provides superior protection. In addition to dual steel bodies the Titan has a massive 3/4” door edge thickness held in place by 18 locking bolts.

Standard Features

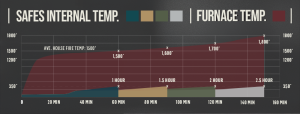

Fire Protection 90 min 1680° F
overall body steel thickness 3/8"
door edge thickness 3/4"
corner bolts 4 bolts std
locking bolts 18 - 20
armaknox ar500 3/16"
lights standard
dehumidifier standard
REINFORCED FIRE DOOR

Our Reinforced Fire Door adds to layers of fire protection to the 3/8" or 1/4" solid steel plate, then it reinforces the door with additional 10-gauge steel for added security (three to four times more steel than other composite type doors). We have found a way to improve on the Reinforced Fire Door. This new folded door adds more steel to the door edge while giving us a cleaner looking edge.

HEAVY 3/8” BODY

Fort Knox has found that a Unibody Construction retains the natural strength of the steel. We have strategically folded the edge around the door making it the most secure body available and giving the door a deep recessed seat to make it virtually impossible to pry. The technical innovation offered by Fort Knox will give more security than raw weight.

STAR CORNER BOLTS

Securing the corners of the door to prevent attacks by prying has been a longtime feature of Fort Knox Vaults. A wide bolt for maximum surface area with long extensions of the bolts gives Fort Knox vaults the complete security lead in the industry.

GLOSS/TEXTURED/DISTRESSED FINISH

Fort Knox offers three distinctive finish options: Textured; a thick durable scratch resistant paint finish perfect for garages, shops or storage rooms. Gloss; a beautiful acrylic urethane enamel paint finish with unmatched luster. Or, Distressed; a unique industrial looking finish that shows some aging and random imperfections (No two are the same).

5-TO-1 PATENTED GEAR DRIVE

Our patented rack and pinion bank style locking mechanism is the most technically sophisticated and reliable locking system available. Auto manufacturers today use rack and pinion steering because it is a stronger, more precise, positive and a maintenance free system. We have added a clutch to the handle to prevent damage from undue force on the handle.

INNER STEEL LINER

For added security and maximum protection, Fort Knox offers an option for additional security levels to line the inner walls of your vault. Between Level 1 and Level 4 security can be added to create additional barriers for any burglar trying to breach the inside of the vault. The industry leading security becomes unmatched with the Inner Steel Liner.

Starting Price
$5,858
Body Steel Thickness
3/8"
Locking Bolts
18 - 20
Inferno Shield
90 min

Colors

    texture
  • Rimrock
    Rimrock
  • Light Granite
    Light Granite
  • Dark Granite
    Dark Granite
  • distressed
  • Distressed
    Distressed
  • two-tone
  • Two Tone Options
    Two Tone Options
  • two-tone-fade
  • Two Tone Fade Options
    Two Tone Fade Options
  • gloss
  • Jet Black
    Jet Black
  • Brilliant White
    Brilliant White
  • Black Cherry
    Black Cherry
  • Burgundy Wine
    Burgundy Wine
  • Copper
    Copper
  • Champagne
    Champagne
  • Platinum
    Platinum
  • Mercedes Silver
    Mercedes Silver
  • Pepperdust
    Pepperdust
  • Sage Green
    Sage Green
  • Forest Green
    Forest Green
  • Root Beer Brown
    Root Beer Brown
  • Midnight Blue
    Midnight Blue
  • Ivory
    Ivory
  • limited
  • Cement
    Cement
  • Army Green
    Army Green
  • Cool Gray
    Cool Gray
  • Dune
    Dune

Configurations

  • Small Cabinet: Top
    (Pricing + Style in Accessories)
    Small Cabinet: Top
    (Pricing + Style in Accessories)
  • Small Cabinet: Bottom
    (Pricing + Style in Accessories)
    Small Cabinet: Bottom
    (Pricing + Style in Accessories)
  • Small File Cabinet: Bottom
    (Pricing + Style in Accessories)
    Small File Cabinet: Bottom
    (Pricing + Style in Accessories)
  • Small File Cabinet: Top
    (Pricing + Style in Accessories)
    Small File Cabinet: Top
    (Pricing + Style in Accessories)
  • 40 Inch Configuration
    40 Inch Configuration
  • Universal Configuration
    60″ x 31″ x 27″
    4 Shelves
    66″ x 37″ x 27″
    5 Shelves
    72″ x 41″ x 27″
    5 Shelves
    72″ x 51″ x 27″
    5 Shelves
    72″ x 61″ x 27″
    5 Shelves
    Universal Configuration
  • Universal with Guns
    60″ x 31″ x 27″
    4 Guns
    66″ x 37″ x 27″
    4 Guns
    72″ x 51″ x 27″
    4 Guns
    72″ x 61″ x 27″
    4 Guns
    Universal with Guns
  • 1/4 Gun Rack Configuration
    60″ x 31″ x 27″
    8 Guns
    66″ x 37″ x 27″
    8 Guns
    72″ x 41″ x 27″
    12 Guns
    72″ x 51″ x 27″
    12 Guns
    72″ x 61″ x 27″
    12 Guns
    1/4 Gun Rack Configuration
  • 1/2 Gun Rack Configuration
    60″ x 31″ x 27″
    18 Guns
    66″ x 37″ x 27″
    22 Guns
    72″ x 41″ x 27″
    26 Guns
    72″ x 51″ x 27″
    34 Guns
    72″ x 61″ x 27″
    42 Guns
    1/2 Gun Rack Configuration
  • 1/2 EZ Gun Configuration
    60″ x 31″ x 27″
    13 Guns
    66″ x 37″ x 27″
    14 Guns
    72″ x 41″ x 27″
    15 Guns
    72″ x 51″ x 27″
    18 Guns
    72″ x 61″ x 27″
    21 Guns
    1/2 EZ Gun Configuration
  • 3/4 Guns Configuration
    60″ x 31″ x 27″
    26 Guns
    66″ x 37″ x 27″
    30 Guns
    72″ x 41″ x 27″
    38 Guns
    72″ x 51″ x 27″
    46 Guns
    72″ x 61″ x 27″
    54 Guns
    3/4 Guns Configuration
  • All Gun Rack Configuration
    60″ x 31″ x 27″
    36 Guns
    66″ x 37″ x 27″
    44 Guns
    72″ x 51″ x 27″
    68 Guns
    72″ x 61″ x 27″
    84 Guns
    All Gun Rack Configuration
  • Collector Configuration
    60″ x 31″ x 27″
    40 Guns
    66″ x 37″ x 27″
    48 Guns
    72″ x 51″ x 27″
    73 Guns
    72″ x 61″ x 27″
    100 Guns
    Collector Configuration
  • Cabinet Layout
    (Pricing + Style in Accessories)
    60″ x 31″ x 27″
    10 Guns
    66″ x 37″ x 27″
    18 Guns
    72″ x 41″ x 27″
    26 Guns
    72″ x 51″ x 27″
    36 Guns
    72″ x 61″ x 27″
    52 Guns
    Cabinet Layout
    (Pricing + Style in Accessories)

Sizes

model name height width volume depth distressed two tone
Titan
6031
60" 31" 28 cu.ft. 27"/30" 7378 7587
Titan
6637
66" 37" 36 cu.ft. 27"/30" 8398 8605
Titan
7241
72" 41" 45 cu.ft. 27"/30" 9363 9562
Titan
7251
72" 51" 57 cu.ft. 27"/30" 11139 11329
Titan
7261
72" 61" 69 cu.ft. 27"/30" 13224 13406
